PostPosted: Fri Jul 25, 2008 6:09 pm
Offline
Board Member
Board Member

Joined: Fri Feb 20, 2004 5:30 pm
Posts: 4435
Location: MI

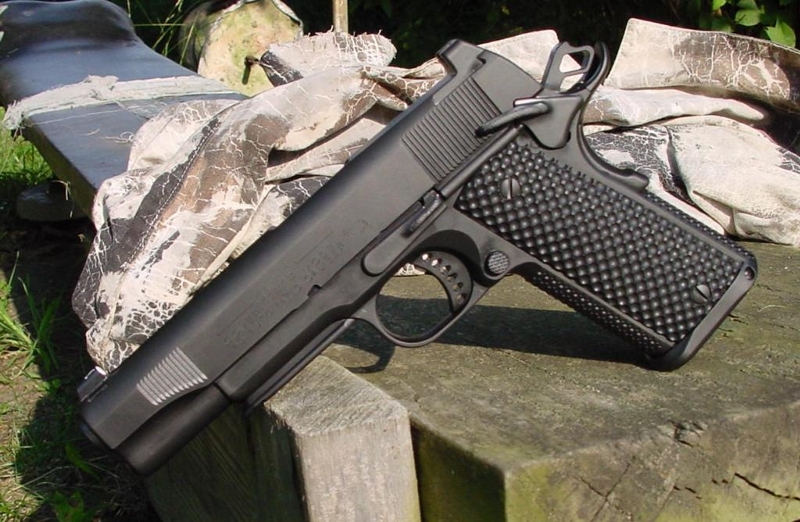

I just shipped this one. It came back from Ion Bond the other day. Sending hours and hours of work out to be refinished is always "pins and needles" time for me but wow, did they do this right. One never knows how much one's carefully-written instructions will be ignored..... but IB just blew me away with their attention to detail. Everything I asked to be left polished-- not blasted-- was. Rails. The entire barrel. The Hammer face. Feedramp...... hammer hooks, sear, all that stuff. Great job, Ion Bond.

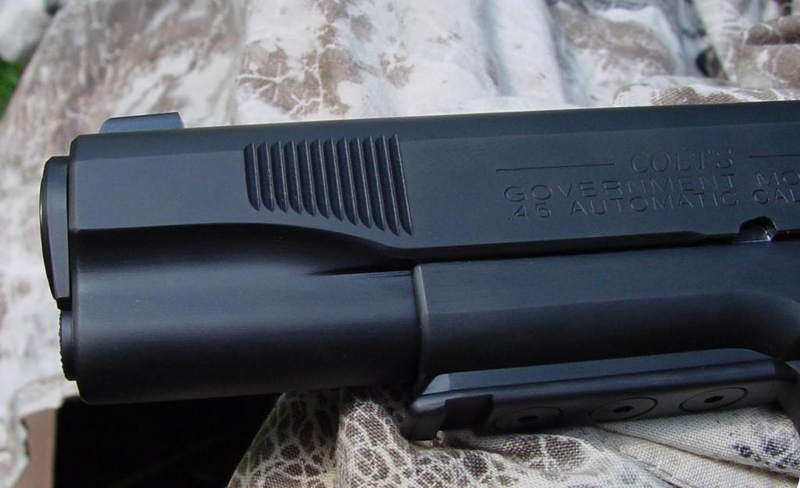

Not to mention what a beautiful finish it is. Deep black when polished, almost like an old Colt blue, and when blasted, a very dark charcoal, just short of black. Dry it off with solvent and it goes much lighter, but with a little oil, much darker.

They say it doesn't give the corrosion resistance that something like chrome would. I have not really tested it. But this gun is all stainless anyway, so......

It is indeed a duty gun for a high-ranking police officer. He's quite a 1911 enthusiast-- this is not the only custom 1911 he owns and not the only one I've built him. He appreciates good leather too and if I know "C", he already has or has on order several pieces of Bulman leather for it. "C" put away his uniform some years ago and now puts on a suit and tie for work, but he is not a "suit and tie guy". For him, this is not a kick-back-and-relax position, where a guy can get by just acting important. He's a doer, and he's a shooter. He trains hard and often with the pistol and carbine, with some of the best, and at times as their assistant. He is a big influence on his department's approach to training and policy, keeping things up to date. He puts in long, hard days constructing rock-solid cases against lots and lots of the people who need putting away the most. When it's time to make the arrests, he's not choreographing things over the radio from the Starbuck's six blocks away. He's there, doing, sweating in his armor with the rest of the guys, well "within range". No idea how many times he's seen the elephant but he was seriously trampled by it more than once and more than once he has trampled it right back. He is a good customer and I'm proud to also have him as a great friend.

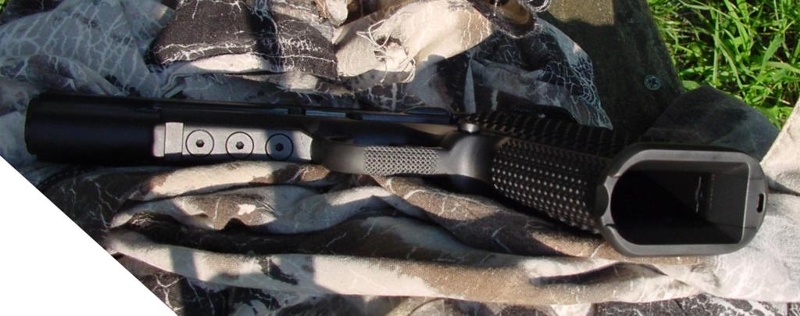

This gun had to have a Dawson rail. To maintain the stainless theme, I made the rail from scratch since the stainless ones available have been, in my experience, chrome-plated carbon steel. As has become my SOP for mounting these, I used bigger screws with a finer thread than the ones normally used.

"C" prefers the Big Dot front sight. We've tried a couple different approaches, on one gun I basically recreated this sight but the big white dot was gold. This time we just went with the standard Ashely part. The rear is made by me from 420 stainless, in a non-standard "Shield Driver" configuration. Big flat on slide plus serrated upright abutment on the front of the sight = a good slide racking tool.

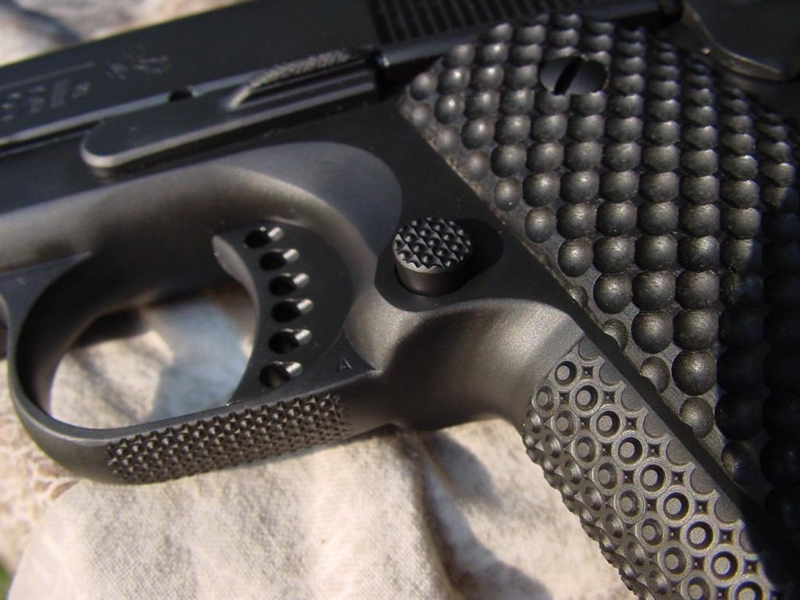

The trigger was drilled by me-- it's an EGW with a solid OT stop, no screw to come loose. I tried to get these made a couple years ago and was glad when EGW came out with them. They only come in "real long", so I recut the trigger face and serrated it.

Lots of Wilson parts-- the grip safety, barrel (keeping it stainless remember), thumb safeties, slide stop, sear, extractors (two of them), and the mag catch. The mainspring housing is from Legacy Custom. The magwell was made by me, 420 stainless again, then it is TIG'd on and blended. Grips are Simonich Gunners that have been thinned out.

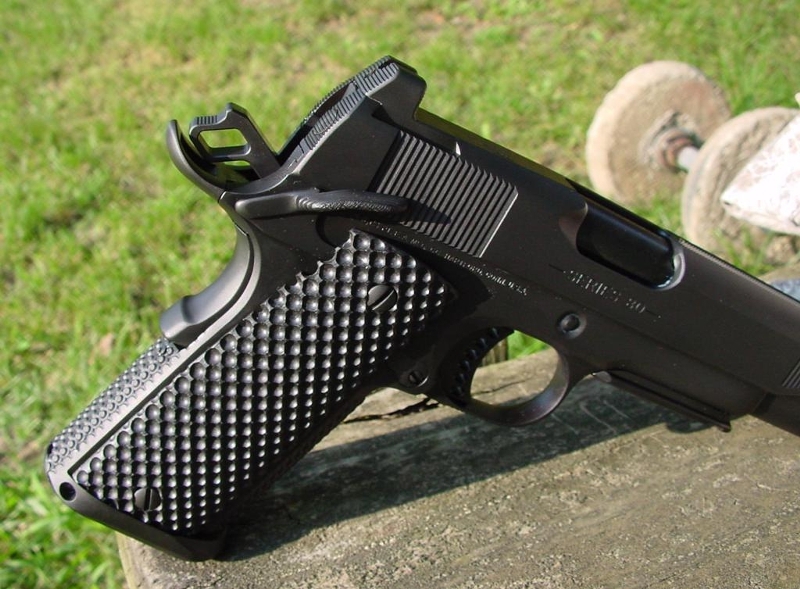

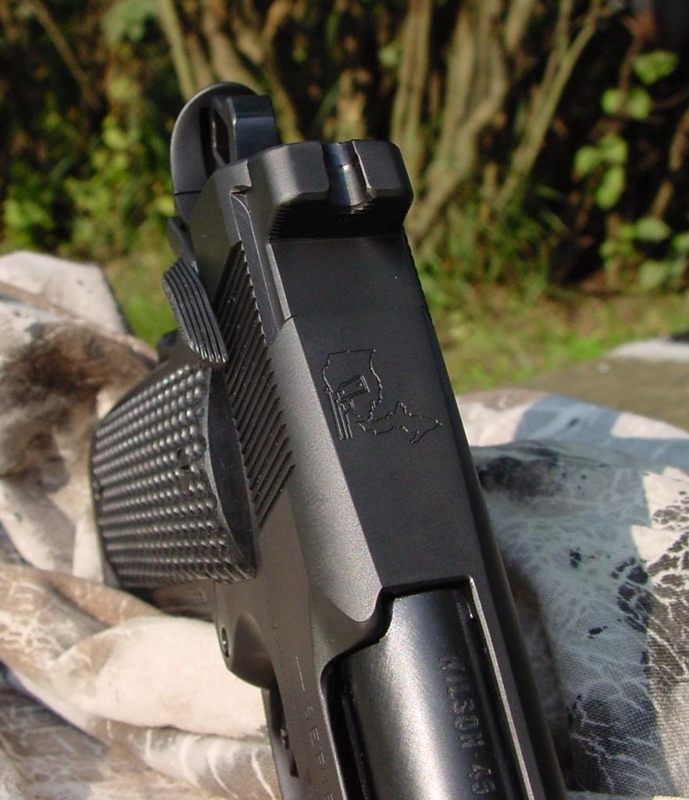

You can still shoot a group with that big front sight, I'm tellin' ya. Now the rear is not that wide-open "V", it's a slightly wider than normal "U" notch, but I've found even with the true Express sights, accuracy does not suffer as much as one might think. This gun anyway will go well under two inches at 28 yards using "C"'s duty load, WW 230 SXT's, a good duty load if ever there was one.









Top

PostPosted: Fri Jul 25, 2008 6:23 pm
Offline
New Member

Joined: Wed May 07, 2008 5:06 pm
Posts: 4
Great looking gun!


Top

PostPosted: Fri Jul 25, 2008 6:30 pm
Offline
Members

Joined: Mon Jan 23, 2006 8:31 pm
Posts: 34
Location: Idaho
Very cool Ned! Your creativity with machine work is something else!

_________________
Steve


Top

PostPosted: Fri Jul 25, 2008 6:55 pm
Offline
Senior Member

Joined: Sun Nov 21, 2004 12:54 am
Posts: 239
Location: Melbourne, Florida
Oh my, that rear sight.

Simply fantastic.

ML


Top

PostPosted: Fri Jul 25, 2008 8:27 pm
Offline
Members

Joined: Tue Jul 24, 2007 9:52 am
Posts: 94
Location: US of A for now...
Believe I'd buy that - in a heartbeat! Fantastic work. I've got 5 1911's being built and I keep coming to this site and finding a new reason to order another.


Top

PostPosted: Fri Jul 25, 2008 8:45 pm
Offline
Board Member
Board Member

Joined: Sun Apr 25, 2004 4:32 pm
Posts: 442
Location: Casper, Wyoming
Well.... the bar gets raised again! Ned, old buddy other than the big dot sight you could just box it up and send it to me. A new personal favorite off your bench. The more I look the more details I find.
The rear sight looks to be a solution to a potential problem. It eliminates the thin spot created when you modified other rear sights, and it looks really clean too. Your all stainless theme is over the top, COOL 8) ! I know this is not the first time you have gone to these lengths to keep that theme and each time I am amazed. So few people whould bother when the gun will be finished to hide the fact....total commitment!

Top Notch Work..as always
Mark

_________________
https://www.graffcustom.com/


Top

PostPosted: Fri Jul 25, 2008 9:21 pm
Offline
Board Member
Board Member

Joined: Fri Feb 20, 2004 5:30 pm
Posts: 4435
Location: MI
Thanks a bunch, guys. Ground branch, thinks for walking the fence line for us.

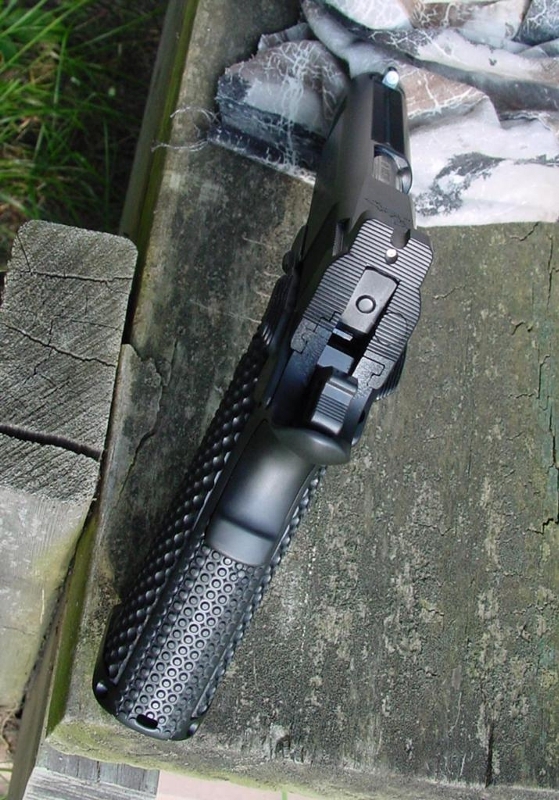

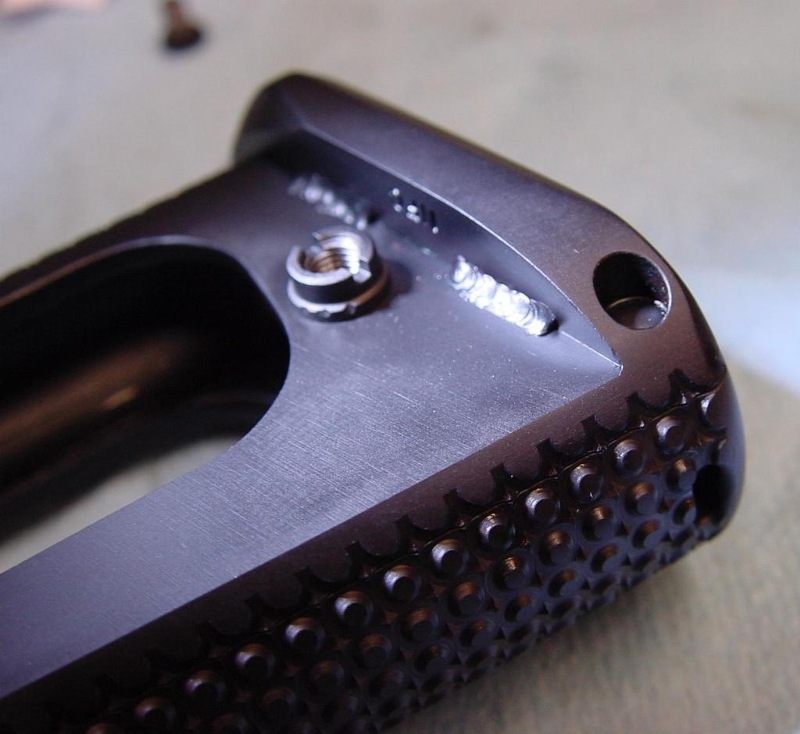

A couple more pics--top, the magwell with the grips off. TIG is one of the two things I don't do myself. Suppose I could but when I have the Rembrandt of welders available, and seldom need him, not much reason to do it myself. Rod (that's really his name) welds with a 10-to-20X stereo scope......

The notches in the grip screw bushing indicate it is the number three bushing.

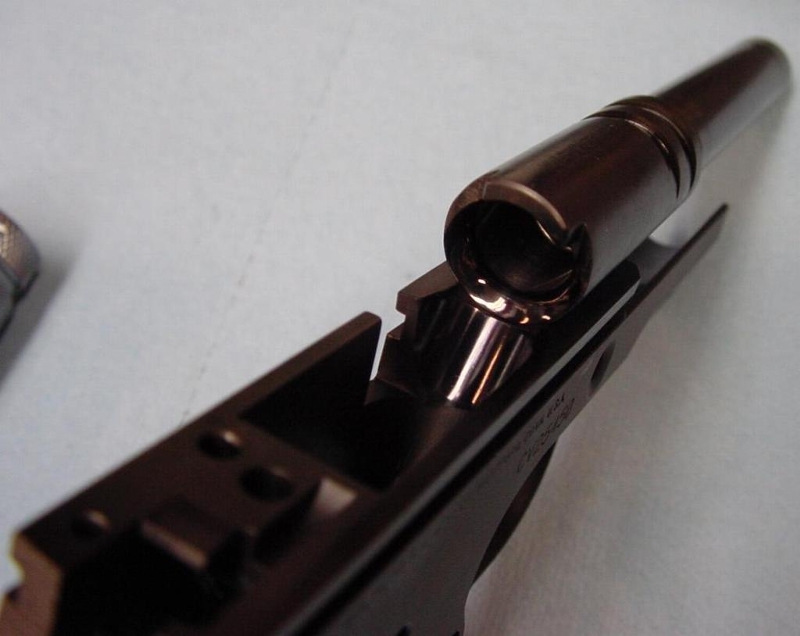

Bottom, showing how nicely preserved the feedramp polish is, after W-DLC.




Top

PostPosted: Fri Jul 25, 2008 11:50 pm
Offline
Board Member
Board Member

Joined: Fri Feb 20, 2004 8:16 am
Posts: 2115
Location: Casper, WY
Extremely well thought out, executed and detailed. The more I look, the more I see. The more I see, the more I like. Very well done, my friend. An outstanding piece for the down and dirty that needs doin'.

_________________
CT Brian Custom
'Blending Art With Firepower'


Top

PostPosted: Sat Jul 26, 2008 5:22 am
Offline
Senior Member

Joined: Fri Feb 20, 2004 9:48 am
Posts: 888
Location: Prescott Valley, AZ
WOW!!!!
The design and execution is flawless.
Many of the features are just 'over the top'.
Rear sight and light rail from SS bar-stock required a big old box-o-time.
This is my 5th time back to marvel over this one and I keep finding more work that impresses.
Right On, Ned!
:D :D

_________________
http://www.rogersprecision.com


Top

PostPosted: Sat Jul 26, 2008 6:58 am
Offline
Members

Joined: Thu Nov 01, 2007 5:25 am
Posts: 34
Location: Nor Cal
Great Execution!!! 8)


Top

PostPosted: Sat Jul 26, 2008 7:50 am
Offline
Firearms Industry
Firearms Industry

Joined: Wed Aug 09, 2006 9:38 pm
Posts: 189
Location: Omaha, NE
Great job Ned ! ! ! Proper adjectives escape me right now...


Top

PostPosted: Sat Jul 26, 2008 8:03 am
Offline
Board Member
Board Member

Joined: Fri Feb 20, 2004 5:30 pm
Posts: 4435
Location: MI
I reviewed the targets late last night and I found that I exaggerated a bit..... I don't think I ever broke 2" with this gun but I did get under 2 1/4. One target shows a group of about 3".... but it's 36 shots so that ain't so bad. The pistol itself would surely do 1 1/2" easily with finer sights and sharper eyes. But I think adding 3/4" to the 28 yard group is not a bad trade off for that honkin' big front sight-- the thing is truly quick.

I really appreciate the comments, guys. CT and Chuck, as guys who have inspired me and as guys who always lead the way, well, let's just say your opinions are especially valuable, thanks.

I feel fortunate and priveleged to be able to rub shoulders with guys like "C". In building guns and in training, I've met maybe 1500 cops in the last 6-7 years. Of course I don't get to know each and every one well, but I've become friends with a great many of them and I feel like I can pull myself up by my fingertips just enough to get quick peek into their world sometimes. To do their job, they have to see and do and know things that the rest of us would be most grateful for not having to see, do, and know, if we had any idea. Some of the very worst stuff gets done to them, daily. If not today, then tomorrow, they may run across somebody who will try to do them serious harm. They keep the wolves at bay as best they can, and the people that are out on the parapets in the GWOT can be a little more at ease about the safety of the families they have left behind to do their job. In short: I hope I never hear of an LTW member telling a cop, "Instead of giving me a ticket, why don'tcha go find a real criminal?!" :)


Top

PostPosted: Sat Jul 26, 2008 1:14 pm
Offline
Senior Member

Joined: Thu Nov 04, 2004 1:15 pm
Posts: 624
Location: MI
Lucky guy. Do I know him?

Oh, and I love how you stopped the front serrations.


Top

PostPosted: Sat Jul 26, 2008 1:16 pm
Offline
Board Member
Board Member

Joined: Fri Feb 20, 2004 5:30 pm
Posts: 4435
Location: MI
I don't believe you've met him.

Lately I've wondered if maybe my work is stagnating a bit...... so in my spare time I'm working on something a little different..... the Howdah 1911.


Top

PostPosted: Sat Jul 26, 2008 1:36 pm
Offline
Board Member
Board Member

Joined: Sun Apr 25, 2004 4:32 pm
Posts: 442
Location: Casper, Wyoming
Ned- I don't believe you......



HAVE ANY SPARE TIME! :lol:



Stagnating for you is pushing the envelope for most.

I keep coming back to go over the pics..again and again. Very nice.

_________________
https://www.graffcustom.com/


Top

PostPosted: Sat Jul 26, 2008 1:51 pm
Offline
Members

Joined: Tue Apr 05, 2005 7:51 am
Posts: 43
Location: Dayton, OH
Yeah. That is one G-D nice pistol. Really, really nice. This edged out Keeney's Razorback as nicest Ive seen on this, or any forum.

I'm trying to pick a picture for my wallpaper.

Nice.


Top

PostPosted: Sat Jul 26, 2008 2:21 pm
Offline
Members

Joined: Fri Mar 23, 2007 3:28 am
Posts: 49
Location: Ohio
Ned,
I really like the rear sight. Very nice pistol.


Top

PostPosted: Sat Jul 26, 2008 3:26 pm
Offline
Firearms Industry
Firearms Industry

Joined: Thu Mar 24, 2005 8:59 pm
Posts: 917
Location: Colbert, WA USA
Can't wait for my turn - that is just awesome!!!

That trigger is sick!!

_________________
I will never forget you Lou......February 21, 2009

John Ralston
5 SHOT LEATHER, LLC - Finely Crafted Custom Handgun Leather

http://www.5ShotLeather.com


Top

PostPosted: Sat Jul 26, 2008 8:16 pm
Offline
Members

Joined: Wed Sep 19, 2007 9:18 am
Posts: 65
Location: Oklahoma
I like that checkering.


Top

PostPosted: Sat Jul 26, 2008 8:41 pm
Offline
Senior Member

Joined: Sun Jan 08, 2006 10:14 am
Posts: 268
Location: NYC
Can we get a picture of the top of the slide near the front sight? It looks interesting. Is there a line down the middle?
Needless to say, you continue to amaze! How is someone supposed to wait five years???


Top

PostPosted: Sun Jul 27, 2008 6:00 am
Offline
Senior Member

Joined: Fri Dec 24, 2004 7:15 pm
Posts: 462
Quote:
... the magwell with the grips off. TIG is one of the two things I don't do myself. Suppose I could but when I have the Rembrandt of welders available, and seldom need him, not much reason to do it myself. Rod (that's really his name) welds with a 10-to-20X stereo scope......

Beautiful work! I'm confused by the well fit. I see the TIG'd spots (very clean!) .... but the rest of the well looks integral with the frame! No silver solder lines showing anywhere. Does the Ion Bond hide that or ....? Also, what is that stamped into the top edge of the magwell? And I really like the lanyard loop.


Top

PostPosted: Sun Jul 27, 2008 7:20 am
Offline
Board Member
Board Member

Joined: Fri Feb 20, 2004 5:30 pm
Posts: 4435
Location: MI
BBBBill, the magwell is welded on where you see it and then on the inside, the joint is also welded all the way around, I call this the "bodywork". Then the inside weld is blended off so it all looks integral.

Before I had Rod weld it on, I stamped "NFC" on the top on one side, and "2007" on the other (started this one in '07).


Top

PostPosted: Sun Jul 27, 2008 1:33 pm
Offline
Administrator
Administrator

Joined: Mon Feb 16, 2004 3:47 pm
Posts: 1812
Location: Tempe, Arizona
My head hurts.... :?

Very well done Ned. Love the rear of the slide and the recessed tritium. I know why you started that thing in 2007. Like Chuck said, lots o' work. :)

That DLC looks great.

_________________
Heirloom Precision, LLC.
480-804-1911

"If everyone is thinking alike, someone isn't thinking."
- General George Patton Jr


Top

PostPosted: Sun Jul 27, 2008 2:26 pm
Offline
Senior Member

Joined: Thu Aug 18, 2005 5:52 pm
Posts: 355
Location: East TN
It's kinda plain.................PLAIN AWESOME :!: :!: :!:

_________________
ΜΟΛΩΝ ΛΑΒE
Thunder Ranch THG & UR(x2), Gunsite 250C,
Yavapai Firearms Acad HG1(x2), HG2, & SG,
Shootrite Prvt Inst HG, NRA Life Member


Top

PostPosted: Sun Jul 27, 2008 3:31 pm
Offline
Members

Joined: Thu May 25, 2006 7:29 pm
Posts: 49
That pistol looks all business with just enough customness to it that a trained eye really knows just how fine a pistol it is.


Top

PostPosted: Sun Jul 27, 2008 4:36 pm
Offline
Members

Joined: Sun Nov 20, 2005 6:15 pm
Posts: 175
Location: Las Vegas
This would be a gun anyone would be proud to carry on duty. I especially like the sights. What width rear notch did you use?

_________________
Hard work pays off


Top

PostPosted: Sun Jul 27, 2008 5:33 pm
Offline
Board Member
Board Member

Joined: Fri Feb 20, 2004 5:30 pm
Posts: 4435
Location: MI
"Double E" or "extra wide" :D

I think it's .156.


Top

PostPosted: Sun Jul 27, 2008 7:37 pm
Offline
Members

Joined: Sat Oct 02, 2004 2:50 pm
Posts: 99
SOOO much attention to detail...! A mere parts-changer Ned is certainly not.


Top

PostPosted: Mon Jul 28, 2008 5:55 am
Offline
Senior Member

Joined: Fri Dec 24, 2004 7:15 pm
Posts: 462
Just an aside thought/comment. Ned, have you ever done (or though about doing) a set of grips with conamids? I think that would be a totally over-the-top finish for a piece like this.


Top

PostPosted: Mon Jul 28, 2008 3:15 pm
Offline
Senior Member

Joined: Thu Aug 18, 2005 5:52 pm
Posts: 355
Location: East TN
Quote:
This would be a gun anyone would be proud to carry on duty.
Yep, I'd love to strap that baby on and go "pick a fight".

BBBBill, I like the conamid grip idea.

_________________
ΜΟΛΩΝ ΛΑΒE
Thunder Ranch THG & UR(x2), Gunsite 250C,
Yavapai Firearms Acad HG1(x2), HG2, & SG,
Shootrite Prvt Inst HG, NRA Life Member
