John Harrison
PostPosted: Sun Jul 20, 2014 6:41 am
Offline
Board Member
Board Member

Joined: Thu Feb 19, 2004 10:26 am
Posts: 1306
Location: Kennesaw, GA

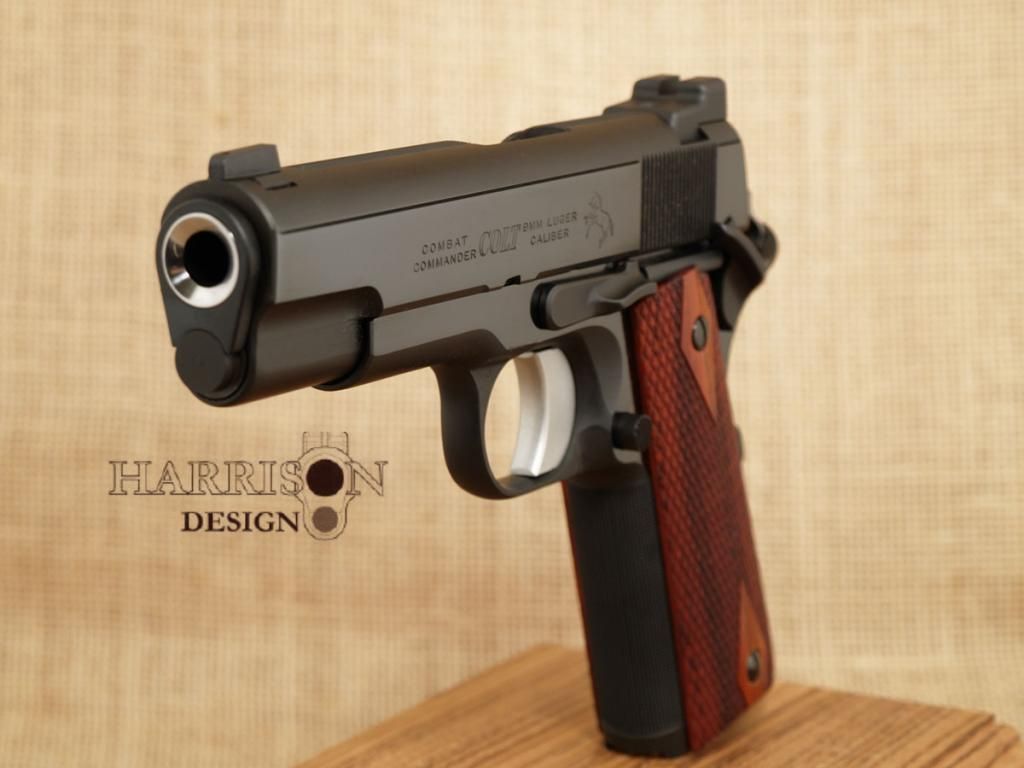

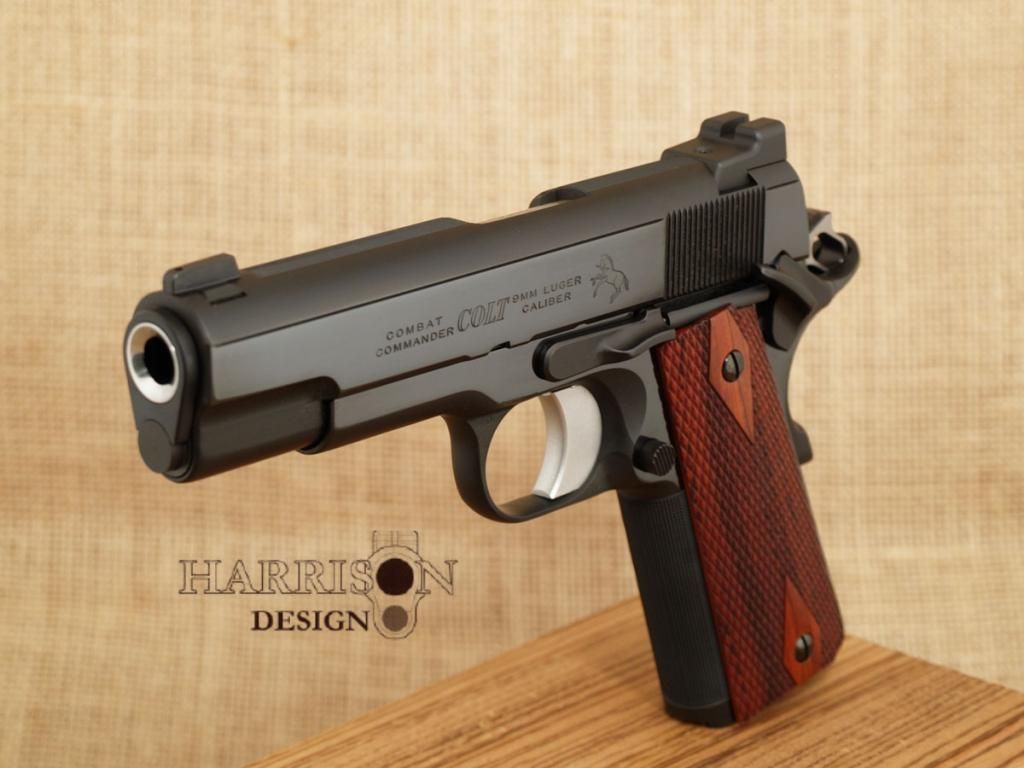

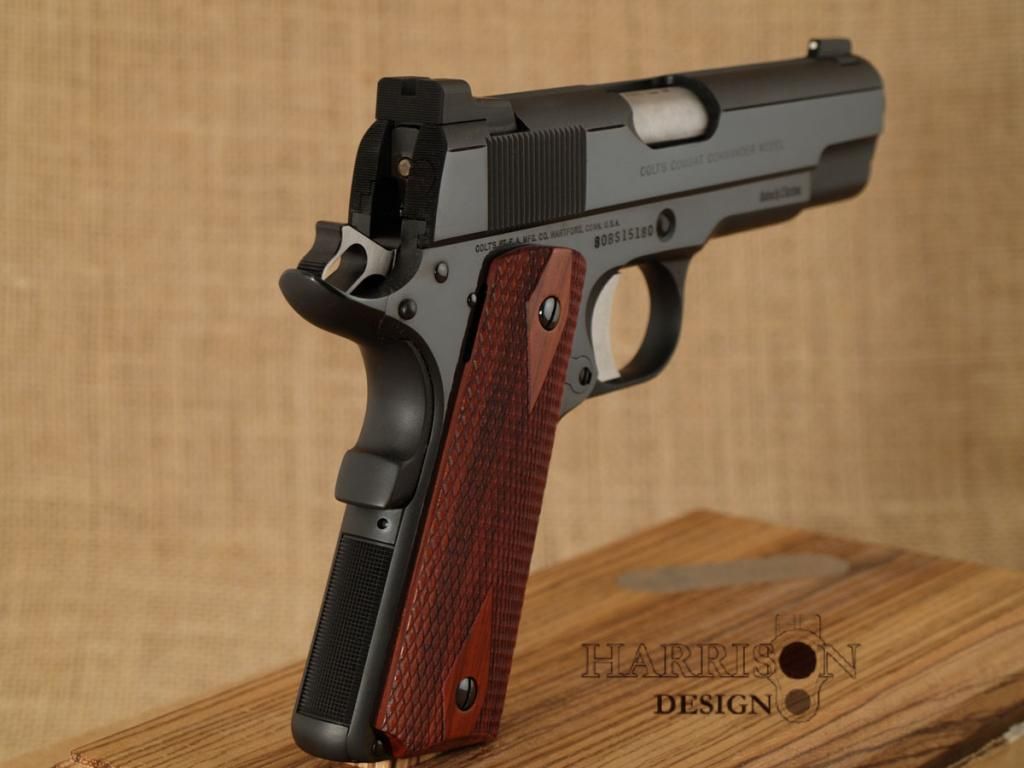

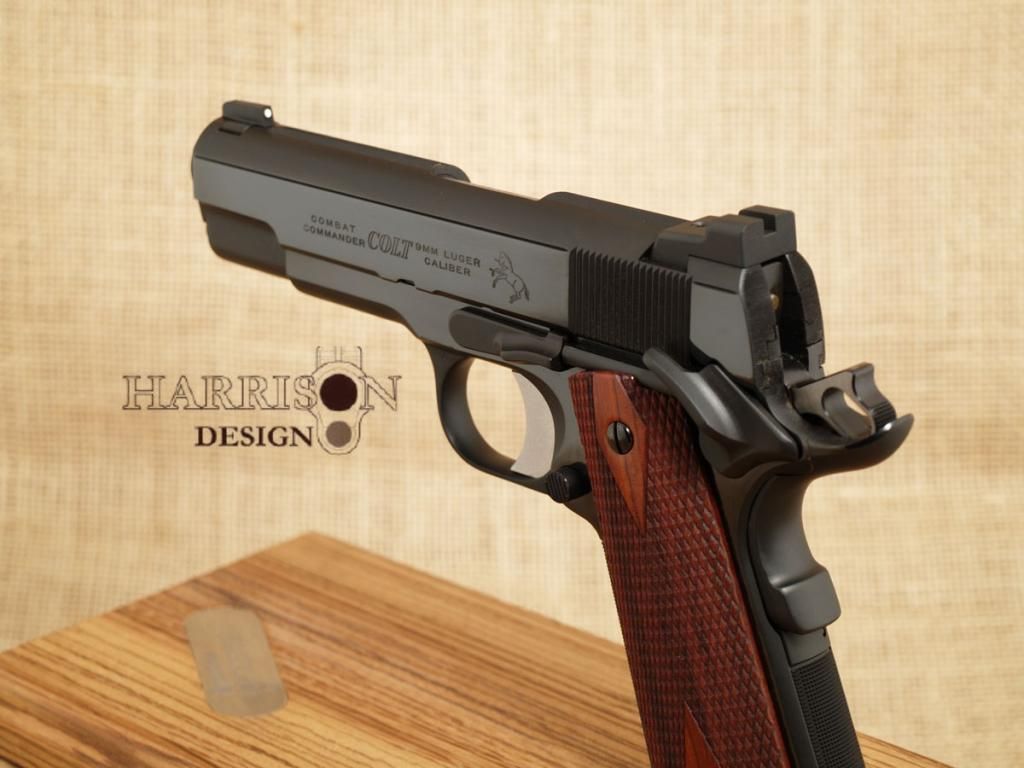

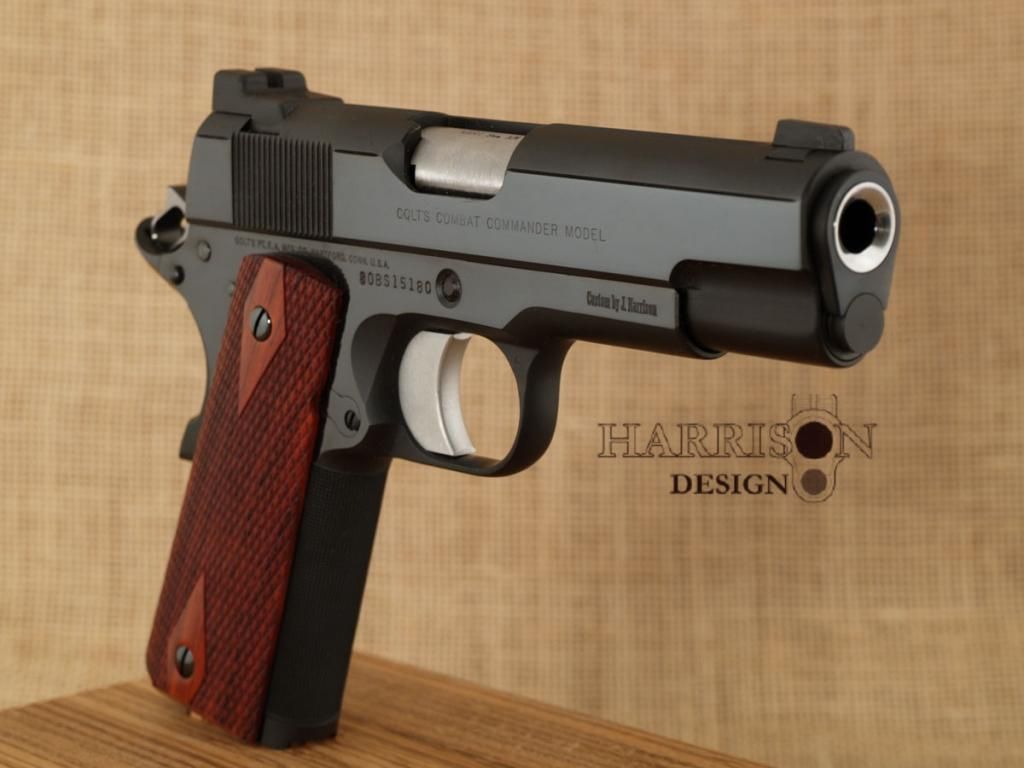

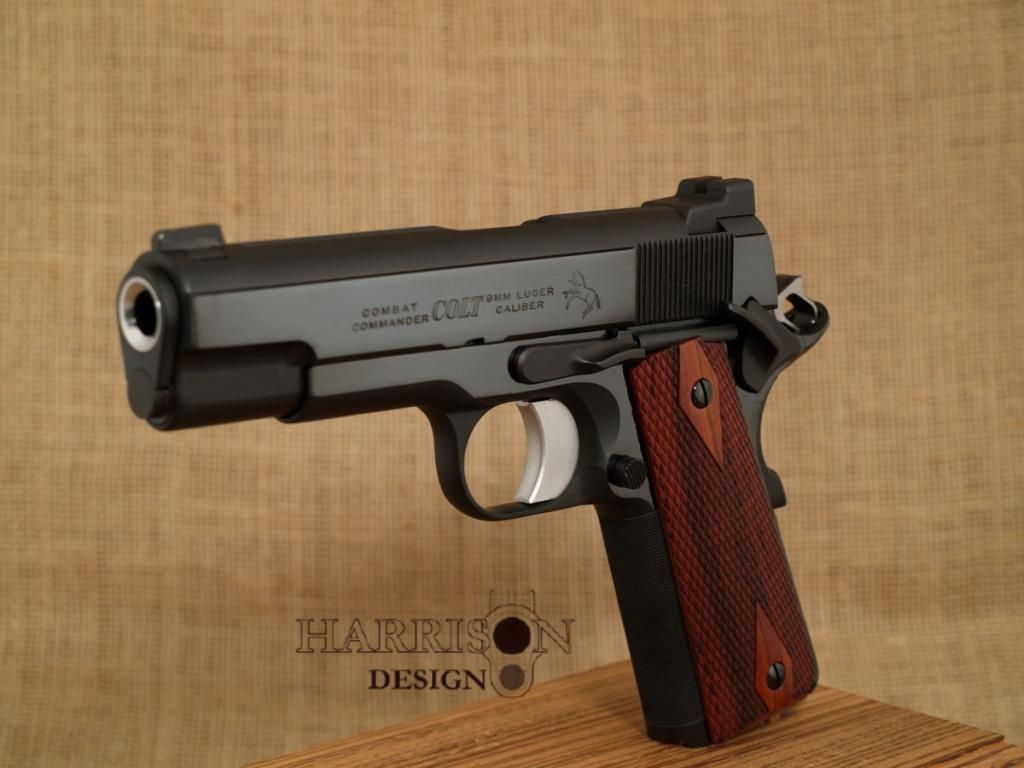

These are fun guns to shoot! Great training gun and I wouldn't be afraid to carry it either. Built on a 70's era Colt, this gun had quite a few things that had to be fixed before it was ready for customizing. The slide bore was extra large at the bushing, so I had to use a Clark Custom part with the three lobes and cut it down to Commander length, weld the front side of the lug & fit it to sit tight against the face of the slide and rework the ID as the fitted diameter was too long for the added angle of lock up. Some one had installed a Millett dual-crimp front sight, so those holes had to be welded up. On the bottom rear corner the angled faces of the frame adjacent to the main spring housing had been belt-sanded off at a taper, so the sides of the MSH were more and more exposed from the top to the bottom. Not uncommon in the days of the arched MSH - you didn't pick up on the mis-match as readily. The angled frame flats had to be welded up and reshaped.

The rest of the custom work is normal H-D fare. Extreme Service sights with a square notch rear and white dot front. Kart barrel with flush-cut, beveled polished crown. H-D slide stop & thumb safety. My slotted Commander hammer & ignition set with H-D smooth faced trigger. Ball cuts, French borders, top and rear serrations with a bottom bevel complete the slide. Front strap high gripped & checkered 30 lpi with smooth top & bottom borders. Same treatment for the Chen MaxRamp MSH. Carry Beveled and Round-Butted with a S&A beavertail. Blued with a 1200 grit polish. Enjoy the pix!


_________________
shop.HarrisonCustom.com
www.HarrisonCustom.com

The grand essentials to happiness in this life are something to do, something to love and something to hope for.
Top

Reply with quote
rockhopper46038
PostPosted: Sun Jul 20, 2014 9:33 am
Offline
New Member

Joined: Thu May 08, 2014 2:57 pm
Posts: 15
Beautiful.
Top

Reply with quote
el_june
PostPosted: Sun Jul 20, 2014 11:33 am
Offline
Senior Member

Joined: Tue Mar 13, 2007 12:34 am
Posts: 290
Location: CA
Nice and clean; beautiful pistol Mr. Harrison....
Top

Reply with quote
A10ACN
PostPosted: Sun Jul 20, 2014 12:48 pm
Offline
Members

Joined: Sat May 29, 2004 7:17 am
Posts: 173
Location: Back in the USAAAAA!!!!!
Crisp.
Top

Reply with quote
arthur rebello jr
PostPosted: Sun Jul 20, 2014 1:53 pm
Offline
Senior Member

Joined: Fri Aug 19, 2005 2:39 pm
Posts: 277
Location: ma
Very nice !

_________________
GO-FOR-IT
Top

Reply with quote
JeffVN
PostPosted: Wed Jul 23, 2014 3:37 am
Offline
LTW Supporter
LTW Supporter

Joined: Thu Sep 09, 2004 3:48 pm
Posts: 321
Location: Las Vegas, NV
Looking good!
Top

Reply with quote
smooth one
PostPosted: Mon Mar 16, 2015 5:52 pm
Offline
Senior Member

Joined: Wed May 05, 2004 9:22 am
Posts: 593
Location: GA
How did I miss this one? Love the 9mm commander by John.
Top

Reply with quote
PT-Partners
PostPosted: Tue Mar 17, 2015 5:08 am
Offline
LTW Supporter
LTW Supporter

Joined: Fri May 14, 2004 4:42 am
Posts: 768
Location: Combine, Texas
That is a nice pistol. I have a five inch hard chrome gun John worked on that is a real tack driver. Good job. Thanks for sharing with us.

_________________
Be safe and keep the brass flying

Terry Peters

Do your research but you get what you pay for front end or back end
http://www.pt-partners.com
@ptpartners_tx
Top

Reply with quote
BR Menz
PostPosted: Tue Mar 17, 2015 3:58 pm
Offline
New Member

Joined: Sat Jan 22, 2011 2:52 pm
Posts: 1
Harrison's work is always top shelf.
Top

Reply with quote
JMC1
PostPosted: Thu Mar 19, 2015 11:15 am
Offline
Members

Joined: Tue Feb 17, 2015 12:16 pm
Posts: 31
Beautiful..
Top

Reply with quote
